PTO Shaft for Concrete Pump Trucks: The Engineering Backbone of High-Rise Construction
How full-power PTO systems keep Britain’s most demanding construction sites running — technical deep-dive, application guidance, and sourcing advice for UK contractors and plant hire companies.
🌍 UK Market Focused
⚙️ B2B Engineering Grade
Need a heavy-duty PTO shaft for your concrete pump fleet?
Ever Power supplies UK contractors with custom-engineered PTO solutions. Fast quotation, CE-certified, full documentation.
Walk past any major construction site in London, Manchester, or Birmingham and you will almost certainly spot a concrete pump truck parked at its perimeter, its articulated boom stretched skyward like a mechanical arm feeding life to the structure rising above. What most site managers and even many plant hire operators do not fully appreciate is the sheer mechanical violence happening inside that truck’s driveline at any given moment. The PTO shaft — Power Take-Off shaft — is the single component translating the truck engine’s raw torque into the relentless hydraulic pressure that pushes wet concrete up to the 52nd floor. Get that component wrong and the entire pour schedule collapses.
Having spent over eighteen years in applied PTO shaft engineering — working directly with European boom pump manufacturers, UK plant hire fleets, and global concrete equipment OEMs — I can tell you that no application tests a PTO shaft more brutally than a concrete pump truck. The torque peaks are violent, the duty cycles are punishing, contamination from concrete slurry is constant, and the cost of a failure mid-pour is measured not just in parts and labour but in wasted concrete, crane time, delayed handovers, and contractual penalties. This guide covers everything a UK buyer or fleet operator needs to know about selecting, specifying, and sourcing the right PTO shaft for concrete pump truck applications.

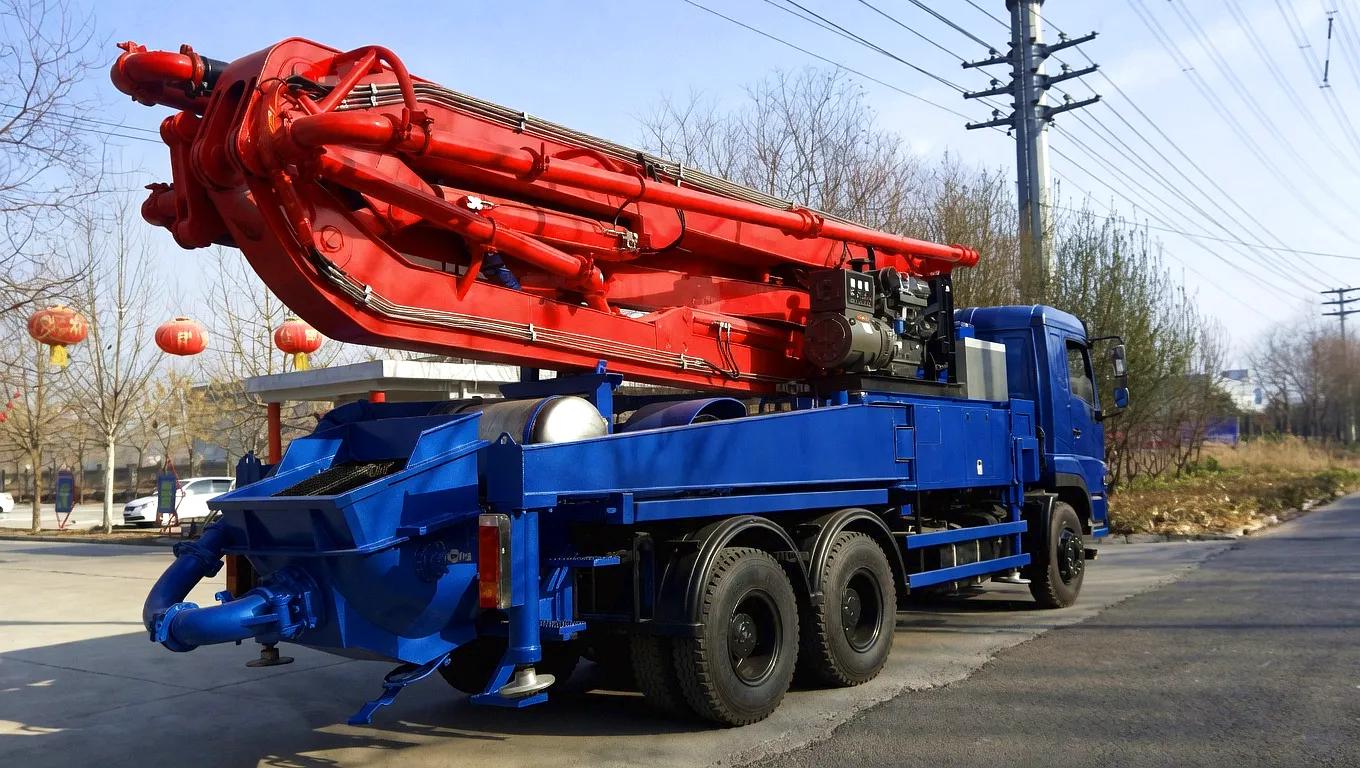

Why Concrete Pump Trucks Demand the Heaviest PTO Shafts on the Market
A standard agricultural PTO shaft — even a heavy series 8 unit — is not designed for the kind of abuse a concrete pump delivers. Where a farm implement draws relatively steady power across a field, a boom pump cycles between zero load and full-throttle demand within fractions of a second as each hydraulic cylinder reaches the end of its stroke and the S-valve switches direction. This produces shock torque loads that can be three to five times the nominal operating torque, occurring hundreds of times per working hour. On a 52-metre boom pump driven by a 440 hp Volvo or Mercedes engine, the input torque figures comfortably exceed 2,500 N·m under normal pumping, with shock peaks well above 6,000 N·m.
The PTO shaft connecting the truck’s transfer gearbox to the main hydraulic pumps must absorb these shocks without fatigue cracking, without allowing the yokes to loosen, and without permitting the splined telescoping section to seize from the combined effects of vibration and concrete dust ingress. That is a tall order, and it explains why reputable suppliers like Ever Power engineer their concrete pump PTO shafts to standards that go well beyond the baseline ISO 500 series requirements that govern simpler agricultural and light industrial applications.
Full-Power PTO: The Architecture Explained
Unlike a live rear PTO on a tractor — which uses a dedicated shaft running at a fixed 540 or 1,000 rpm independent of the gearbox — a concrete pump truck uses what the industry calls a full-power PTO (sometimes written FP-PTO or direct engine PTO). This unit bolts directly to the rear or side of the truck’s main gearbox and is capable of transmitting the engine’s full rated output continuously. There is no slipping clutch, no speed reduction, and no secondary drivetrain to absorb shock. Every Newton-metre of torque produced by the engine is channelled straight through the PTO shaft to the hydraulic pump package.
This means the PTO shaft itself must handle 100% of engine output, not a fraction of it. For an 8×4 pump truck in the UK running a six-cylinder diesel at 2,100 rpm, that translates to continuous shaft loads that would destroy most off-the-shelf industrial cardan shafts within days.

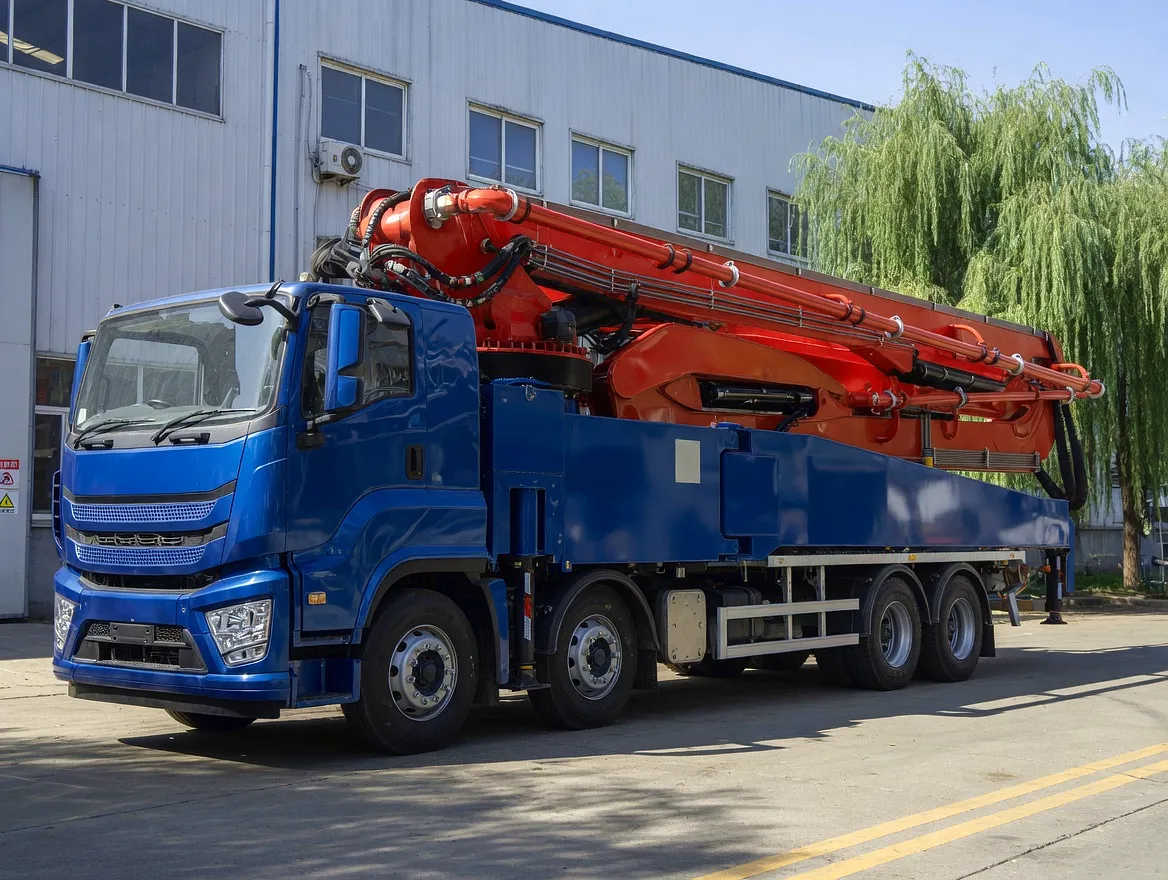

The Application in Context: High-Rise and Major Infrastructure Pours
Picture a raft foundation pour for a 30-storey residential tower in the London Borough of Southwark. The structural engineer has specified C40/50 concrete with a tight placement window of four hours before initial set. Three concrete pump trucks are positioned around the site perimeter, each with its boom reaching into the excavation from a different angle to eliminate any dead zones. Each pump is running at around 80 m³/h throughput, driven entirely by its engine PTO. The PTO shafts on these three machines will collectively transmit the equivalent of over 1,000 horsepower continuously for four hours with almost zero tolerance for downtime.
This is not a hypothetical. It is the daily reality for UK boom pump operators on projects from Canary Wharf to HS2 civils packages in the Midlands. The PTO shaft in this scenario is not merely a coupling — it is the central load-bearing element of an entire production system worth millions of pounds in poured concrete value.
Beyond high-rise residential and commercial towers, full-power PTO shafts see equally demanding service on tunnel lining pours, bridge deck placements, pre-stressed beam yards, and large industrial floor slabs where consistent pump pressure is essential to achieving specification-compliant concrete consolidation. In every case, the common denominator is a PTO shaft that must deliver power reliably, absorb shock without fatigue, and survive an environment laced with abrasive concrete slurry.
Technical Performance Parameters: Ever Power Concrete Pump PTO Shafts
| Parameter | Standard Series | Heavy Series | Full-Power Series (FP) |
|---|---|---|---|
| Nominal Torque (N·m) | Up to 1,800 | Up to 3,500 | Up to 7,200+ |
| Peak Shock Torque (N·m) | ×2.5 nominal | ×3.0 nominal | ×3.5 nominal |
| Operating Speed (rpm) | 540 / 1,000 | 540 / 1,000 / 1,200 | Up to 2,100 (custom) |
| Tube Material | Cold-drawn steel | Seamless alloy steel | 42CrMo4 heat-treated |
| Spline Profile | DIN 5480 standard | DIN 5480 HD profile | Custom spline / OEM matched |
| Joint Type | Welded yoke / bolt-on | Forged yoke, friction weld | Heavy forged, full-balance |
| Sealing Standard | IP54 | IP65 | IP66 / double-lip seal |
| Safety Guard | Basic chain guard | Full CE-compliant guard | CE / PUWER-compliant guard |
| Dynamic Balance Grade | G6.3 | G2.5 | G1.0 (custom balancing) |
All full-power series specifications are available for custom configuration. Contact Ever Power for project-specific engineering support.
Material Science Behind the Shaft
The tube section of a concrete pump PTO shaft is not a commodity steel pipe. Ever Power’s full-power series uses 42CrMo4 (equivalent to EN 19 / BS 970 709M40 in British standards) — a chromium-molybdenum alloy steel that combines high tensile strength with excellent fatigue resistance. After forming, the tube undergoes induction hardening on the splined sections and shot-peening on the outer surface to introduce beneficial compressive residual stresses that dramatically extend fatigue life under cyclic loading.
The cross and bearing journal kits — the spider assemblies — are manufactured from case-hardened bearing steel with a surface hardness of 58–62 HRC and a tough core that prevents brittle fracture under sudden shock loads. Needle roller bearings are sealed with triple-lip seals filled with high-pressure grease, specifically formulated to resist washout from pressurised wash-down and to maintain viscosity across the temperature range seen on a concrete pump chassis: from −10°C winter starts to 90°C+ after sustained high-load pumping.

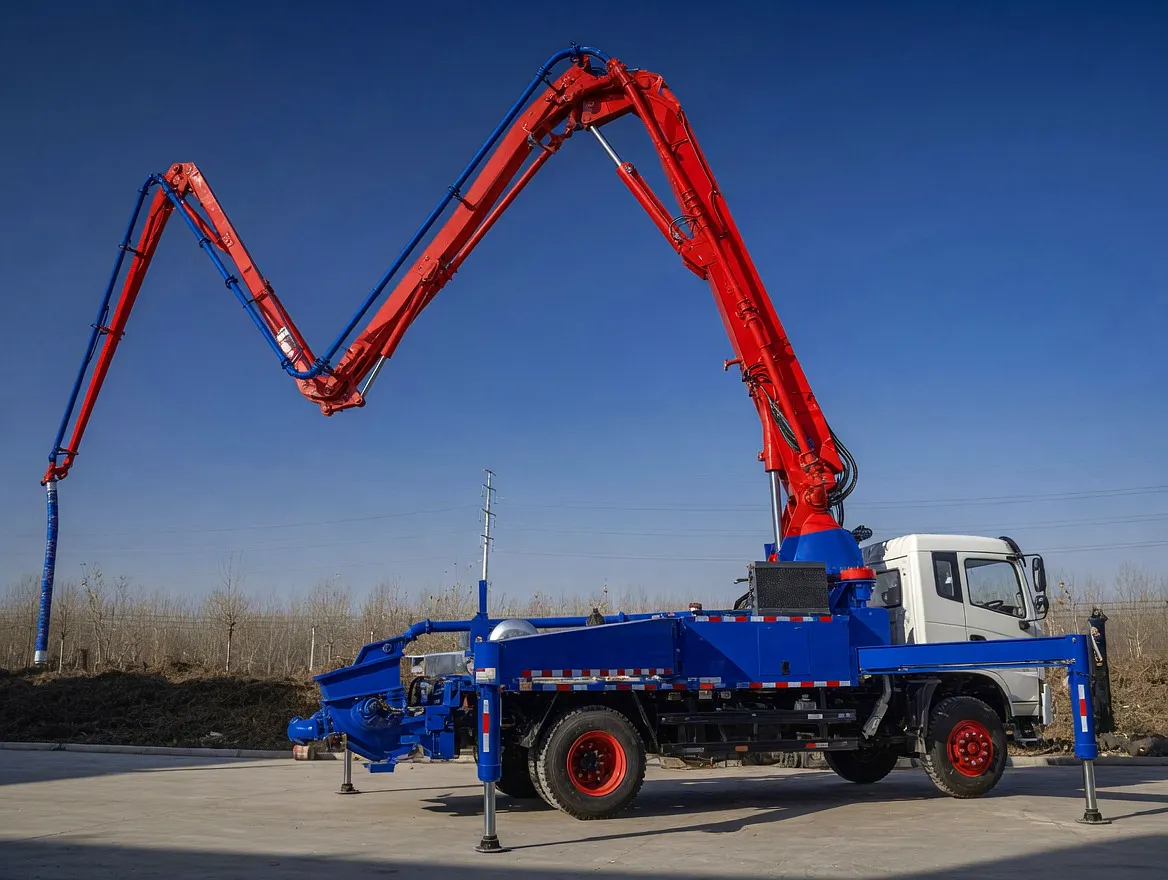

How the Power Flow Actually Works: From Engine to Boom
Understanding the power flow helps clarify why the PTO shaft specification matters so much. When the pump truck operator engages the PTO, a dog-tooth clutch inside the transfer box locks the PTO output flange to the engine’s main output shaft. From that moment, engine torque — all of it — is diverted from the wheels and channelled into the PTO shaft. The shaft transmits this rotational energy to the input flange of the main hydraulic pump package, typically a tandem gear pump or an axial-piston variable-displacement pump capable of generating pressures up to 350 bar.
These pumps convert the rotational input into high-pressure hydraulic flow that feeds the twin concrete cylinders at the rear of the mixer body. Inside each cylinder, a hardened piston is driven by a hydraulic ram — first one, then the other, in alternation. As one piston pushes forward (compressing the concrete and forcing it into the delivery line), the other retracts (drawing fresh concrete from the hopper through the open S-valve port). The S-valve then rotates under its own hydraulic actuator to redirect the delivery port to the second cylinder, and the cycle repeats. This alternating-piston action is what creates the rhythmic “thump” you hear from a working pump truck, and it is also the source of those violent torque transients that propagate backwards through the pump, through the PTO shaft, and into the gearbox.
A PTO shaft that lacks adequate torsional damping or that has been improperly phased (the two universal joints must be set at equal angles to achieve velocity homogeneity) will amplify these transients rather than absorb them. The result is accelerated wear on every component in the driveline, from the gearbox output bearing to the pump input seal. Ever Power’s engineering team phases and dynamically balances every full-power shaft assembly before despatch, eliminating this risk entirely.
Why UK Operators Choose Ever Power PTO Shafts for Concrete Pump Trucks
Engineered for Shock Load
Every full-power shaft is rated for a 3.5× overload factor, absorbing the S-valve switching transients without fatigue failure over the design service life.
Sealed Against Contamination
IP66-rated double-lip spline seals keep concrete slurry and washdown water out of the sliding section — the number one cause of premature failure on generic shafts.
CE & PUWER Compliant
Full CE marking and guard systems compliant with UK PUWER regulations, essential for UK construction site safety compliance and insurance purposes.
OEM-Matched Custom Fitting
Matched to Schwing, Putzmeister, CIFA, Sany, and Zoomlion pump units. Custom yoke profiles and lengths available with fast-turn fabrication for urgent fleet needs.
Full Documentation Package
Every shipment includes material test certificates, dimensional inspection reports, balance records, and CE Declaration of Conformity — required for ISO-audited fleets.
UK-Ready Logistics
Stock items ship within 48 hours to UK mainland addresses via tracked freight. Custom units typically 10–15 working days from drawing approval to despatch.
Selecting the Right PTO Shaft Length and Angle
One of the most common specification errors made by fleet managers sourcing replacement PTO shafts is treating shaft length as a fixed dimension. On a concrete pump truck, the distance between the PTO output flange and the pump input flange can vary by 30–80 mm depending on the type of engine mount isolators fitted, the age of the chassis (engine mounts wear and sag), and whether an intermediate gearbox has been added to split drive between dual pump stacks.
The telescoping (sliding) section of the shaft must have at least 20% compression reserve relative to the fully-extended operating length. Equally critical is the operating angle. Universal joints should ideally operate at angles below 6° for high-speed applications; angles above 10° at 1,800+ rpm will introduce unacceptable velocity variation (second-order vibration) that can crack pump input housings within weeks. Ever Power’s applications engineers will calculate the correct shaft geometry for your specific truck and pump combination before fabrication — this service is included at no additional charge with every custom order.
England — Specialist Plant Hire Sector
Midlands Plant Hire Firm Cuts Unscheduled Downtime by 74% on Five-Pump Fleet
A Birmingham-based plant hire company operating a fleet of five long-boom concrete pump trucks (two 52-metre Schwing S 52 SX units and three 42-metre Putzmeister M 42-5 units) was experiencing chronic PTO shaft failures averaging once every six to eight weeks across the fleet. The failures were concentrated in two failure modes: spline seizure from concrete slurry ingress on the sliding section, and cross-bearing fracture on the pump-end universal joint. Each failure took an average of 11 hours to diagnose and repair, at a combined cost — including concrete wastage, crane time, and contract penalties — of approximately £4,200 per incident.
The company’s fleet manager contacted Ever Power after seeing a recommendation on a UK plant hire association forum. After a technical review of the failure records and a dimensional survey of the truck installations (conducted remotely using the operator’s photos and measurements), Ever Power’s engineering team specified a fleet-wide replacement programme using its FP-700 full-power series shaft, incorporating IP66 double-lip spline seals, 42CrMo4 tube construction, and custom-length sliding sections matched to the actual installation geometry rather than the nominal factory dimension.
In the fourteen months following installation, the fleet recorded only one PTO-related fault — a bearing failure on an older Putzmeister unit that was subsequently identified as having a misaligned pump mounting bracket rather than a shaft defect. Unscheduled downtime attributable to PTO shaft failure dropped by 74%. The fleet manager calculated a net annual saving of approximately £28,000 against the premium paid over generic replacement units — a return on investment achieved within the first eight months.
“We’d been through three different shaft suppliers before finding Ever Power. The IP66 spline sealing alone has saved us more in avoided failures than the entire order was worth. Our site managers now call these ‘the shafts that don’t fail’.”
— Fleet Manager, Midlands Plant Hire Co.
Birmingham, West Midlands
“The custom engineering support was genuinely impressive. Their team calculated the correct operating angles for our specific Schwing installation, something none of the off-the-shelf suppliers had ever discussed with us. Big difference in how the truck runs.”
— Workshop Supervisor, Specialist Concrete Pumping Ltd.
Greater Manchester
“CE documentation and material certs arrived with the order — essential for our ISO 9001 audit. We’ve since standardised on Ever Power across our entire fleet of seven pump trucks. Delivery to our Yorkshire depot was 10 days from order, which is excellent for custom parts.”
— Procurement Director, Northern Infrastructure Group
Leeds, West Yorkshire
Maintenance Schedule for PTO Shafts on UK Pump Fleets
No PTO shaft — regardless of build quality — is maintenance-free in a concrete pump truck environment. The combination of continuous high torque, shock loading, vibration, and external contamination demands a structured inspection programme. The following schedule reflects best practice for UK-based pump fleets operating an average of 180–220 working hours per month, which corresponds to a busy city-centre or infrastructure contract deployment pattern.
| Interval | Inspection / Action | Acceptance Criterion |
|---|---|---|
| Daily (pre-shift) | Visual check for guard integrity, seal splits, grease leakage | No cracked guards, no exposed yokes, seals intact |
| Weekly (50 hrs) | Lubricate cross kits via grease nipples; check spline engagement length | Grease purging from seals (confirms circuit integrity) |
| Monthly (200 hrs) | Check U-joint play (axial and radial); torque yoke clamp bolts | Max 0.05 mm radial play at bearing journals; torque to spec |
| Quarterly (600 hrs) | Strip spline section; clean, inspect wear land, re-grease | Spline flanks wear <15% of tooth depth; no pitting |
| Annual (1,200 hrs) | Full bearing replacement; re-balance if new tube fitted; phase check | New cross kits installed; dynamic balance G1.0 confirmed |
Ever Power’s Custom PTO Shaft Engineering Capability
One of the persistent frustrations voiced by UK pump fleet operators is the assumption by many suppliers that all concrete pump PTO shafts are interchangeable. They are not. Schwing uses a different PTO output flange bolt pattern from Putzmeister. CIFA’s tandem pump arrangements require a shaft that splits torque between two input joints. Sany’s newer electric-assist models have different length constraints than their purely hydraulic predecessors. Ever Power’s manufacturing operation is specifically structured to handle this diversity.
The factory operates a dedicated custom fabrication line for heavy industrial and truck PTO shafts, with CNC turning centres capable of producing yoke profiles down to ±0.02 mm tolerance on critical mating surfaces. Friction welding equipment joins tubes to forged yoke blanks without the heat distortion associated with arc welding, maintaining straightness tolerances that are essential for high-speed balance grades. A dynamic balancing machine capable of handling shafts up to 2,400 mm in length rounds out the production capability, allowing the team to achieve the G1.0 balance grade that eliminates chassis-transmitted vibration on high-rpm pump installations.
For UK fleet operators and OEM equipment builders, the custom service extends to full drawing review, prototype fabrication and field testing support, and ongoing supply agreements with pre-agreed lead times and pricing — essential for planned maintenance programmes where shaft replacement is scheduled rather than reactive. If you are managing a fleet of five or more pump trucks and currently sourcing PTO shafts reactively, this structured supply model will typically reduce your effective parts cost by 15–25% while eliminating emergency freight premiums.
⚙️ OEM Cross-Reference Matching
Schwing, Putzmeister, CIFA, Sany, Zoomlion, and other major manufacturers covered. Provide your OEM part number for instant cross-reference.
📜 Technical Drawing Review
Send us your dimensional drawing or a set of site measurements and our engineers will validate the specification before production starts.
🚚 UK Stocked for Fast Dispatch
Common series shafts stocked at UK-accessible warehouse for next-day despatch to England, Scotland, and Wales on urgent call-outs.
Sourcing PTO Shafts for Concrete Pump Trucks in the United Kingdom
The UK concrete pump hire market is among the most demanding in Europe. A combination of dense urban construction activity — particularly in London and the South East — tight site access constraints, and a strong culture of contractual performance standards means that plant reliability is not optional. The UK’s major pump fleet operators, many of whom are members of the Concrete Pump Operators’ Association (CPOA), run their machines to strict planned maintenance schedules and subject their suppliers to audit-level scrutiny on documentation and quality records.
This environment demands a PTO shaft supplier who understands UK operational requirements: CE marking under the UK Machinery Directive (UK MCA post-Brexit), PUWER-compliant guarding, documentation in English, and the ability to support regional engineering enquiries without significant language or time-zone barriers. Ever Power has invested in a UK-facing technical sales and support function specifically to serve this market, with engineers who have direct field experience with the pump models operating on British construction sites.
Whether you are operating in London, Manchester, Glasgow, Cardiff, or Belfast — whether your fleet consists of Schwing, Putzmeister, CIFA, or Chinese-built pump trucks — Ever Power can supply and support the PTO shaft your machines need. The company serves plant hire businesses of every scale, from single-truck owner-operators to major national fleet operators running 50+ units. Pricing is transparent, lead times are committed in writing, and every order is supported by the full documentation package that UK ISO-audited operations require.
📍 Midlands
📍 North West & Yorkshire
📍 Scotland & Wales
📍 Northern Ireland
PTO Shaft Compatibility: Common UK Concrete Pump Truck Models
| Pump Model | Typical Boom | PTO Type | Shaft Series (EP) | Notes |
|---|---|---|---|---|
| Schwing S 52 SX | 52 m | Full-Power Direct | FP-700 | Tandem pump input; dual-yoke custom available |
| Putzmeister M 42-5 | 42 m | Full-Power Direct | FP-600 | Check telescoping length vs chassis variant |
| CIFA K47L | 47 m | Full-Power / Split | FP-650 Custom | Split-drive versions need dual-output yoke |
| Sany SYM5390THB | 56 m | Full-Power Direct | FP-750 | Flange spec varies by Euro V / VI chassis |
| Zoomlion ZLJ5418THB | 62 m | Full-Power Direct | FP-800 Custom | High-torque variant required; confirm flange bolt PCD |
Not all variants listed. Contact Ever Power with your pump model serial number for a verified specification match before ordering.
Frequently Asked Questions
What is the best type of PTO shaft for a concrete pump truck working on high-rise construction sites in London?
For London high-rise construction work, a full-power direct PTO shaft in the FP-600 to FP-750 series is the appropriate choice, matched to your specific boom pump model. The key specification requirements are a 3.5× shock-load rating, IP66 spline sealing, 42CrMo4 alloy tube construction, and PUWER-compliant guarding. The exact length and yoke profile must be confirmed against your installation geometry — do not assume OEM nominal dimensions are correct without on-site verification.
How much does a replacement PTO shaft cost for a Schwing S 52 SX concrete pump truck in the UK, and where can I get a quote?
Pricing for a full-power replacement PTO shaft for a Schwing S 52 SX depends on the shaft series, custom length requirements, and whether dual-output yoke configuration is needed. Ever Power provides transparent written quotations. Contact [email protected] with your pump model, chassis configuration, and any dimensional information you have — typical quotation turnaround is within 24 working hours.
Which UK plant hire companies use heavy-duty PTO shafts from specialist suppliers rather than OEM parts, and what are the advantages?
A growing number of UK plant hire operators — particularly those running mixed-brand fleets of more than three pump trucks — source PTO shafts from specialist suppliers rather than going back to the OEM. The advantages are significant: specialist suppliers can provide single-source supply across multiple pump brands, offer superior technical specifications (better sealing, higher shock rating, improved balance), and typically provide faster turnaround on custom dimensions. Pricing is generally 20–35% below OEM list price for equivalent or higher specification. The key is ensuring the specialist supplier can provide full CE documentation and PUWER guard compliance — which Ever Power can.
How do I know when my concrete pump truck’s PTO shaft needs replacing, and what are the early warning signs of failure?
Early warning signs of PTO shaft deterioration on a concrete pump truck include: unusual vibration felt through the chassis during pumping (especially at operating speed); clicking or clunking sounds during PTO engagement or at the start of a pump cycle; visible grease staining around the spline section guard (indicates seal failure); difficulty engaging or extending the telescoping section; and increased bearing play detected during monthly inspection. If any of these signs appear, the shaft should be removed for inspection at the earliest opportunity — continuing to operate a deteriorating shaft risks cascade failure of the transfer gearbox and pump input bearings, which is far more expensive to repair.
Can Ever Power supply a custom PTO shaft for a concrete pump truck in the UK with a fast turnaround price for an urgent fleet repair?
Yes. Ever Power maintains stock of common full-power shaft series for same-day or next-day despatch to UK mainland addresses. For non-stock custom units, an urgent fabrication service is available with lead times discussed at the time of enquiry — typically 5–7 working days for straightforward custom lengths, longer for complex dual-output or non-standard flange configurations. Email [email protected] with the subject line “URGENT FLEET REPAIR” and include your pump model, approximate shaft length, and PTO flange details for priority handling.
What PUWER compliance requirements apply to PTO shaft guards on concrete pump trucks operating on UK construction sites?
Under the Provision and Use of Work Equipment Regulations 1998 (PUWER), all rotating parts of work equipment — including PTO shafts — must be effectively guarded to prevent contact. The guard must be fixed (or interlocked if removal for maintenance is required), strong enough to resist the forces of a shaft failure (burst containment), and must not itself create a trapping hazard. Guards must be maintained in good condition and inspected as part of the regular maintenance schedule. CE-marked guarding supplied with Ever Power shafts is designed to comply with PUWER requirements and includes EN 953-compliant fixed guard panels. Operators should ensure guards are inspected daily and replaced if cracked or deformed, as a broken guard fails PUWER compliance regardless of the shaft’s mechanical condition.
Ready to Specify the Right PTO Shaft for Your Pump Truck Fleet?
Ever Power’s engineering team is ready to review your application, confirm the correct specification, and provide a transparent written quotation with delivery commitment. No obligation. Full documentation included.
