When you put a New Holland BigBaler 330 or 340 through a dense stand of barley straw or wheat in the middle of a tight UK harvest window, the PTO shaft is the single most load-bearing link in the entire drivetrain. Every compression cycle sends a sharp, high-magnitude torque spike through the shaft — the bale chamber is compressing at forces approaching 36 tonnes, the flywheel is spinning at full inertia, and the knotter mechanism is firing in rapid sequence. A shaft with inadequate yoke hardness, poor spline surface finish, or a poorly calibrated slip clutch will fail quietly and expensively, transferring destructive loads into the baler gearbox, the knotter drive, or the tractor PTO shaft bearing housing. The repair bill almost always runs to several times the cost of fitting the right PTO shaft for New Holland BigBaler 330 and 340 in the first place.
This replacement shaft is manufactured from cold-drawn seamless steel tube, friction-welded to drop-forged alloy yokes and fitted with a factory-preset friction slip clutch matched to the New Holland BigBaler 330 and 340 input specification. The assembly arrives dynamically balanced, fully greased, and guarded — ready to fit within a single working hour. Whether you manage a mixed arable operation in Lincolnshire, run a baling contracting fleet in the Scottish Borders, operate a livestock hay enterprise in Devon, or supply parts to UK agricultural dealers, this PTO driveshaft is designed around the demands of your real working environment.
⚙️ Get a Quote — [email protected]
Reply within 24 hours · Custom spline profiles & lengths available · UK stock
Why This PTO Shaft Outperforms Standard Replacements
Drop-Forged Alloy Yokes, Heat-Treated
Each yoke is drop-forged from 20CrMnTi alloy steel and case-hardened to HRC 55–62 surface hardness. Cross-bores are honed to H7 tolerance for a slip-free bearing fit. This eliminates the notch-wear pattern that destroys cast yokes inside one baling season and causes premature cross-journal failure on high-duty contracting operations.

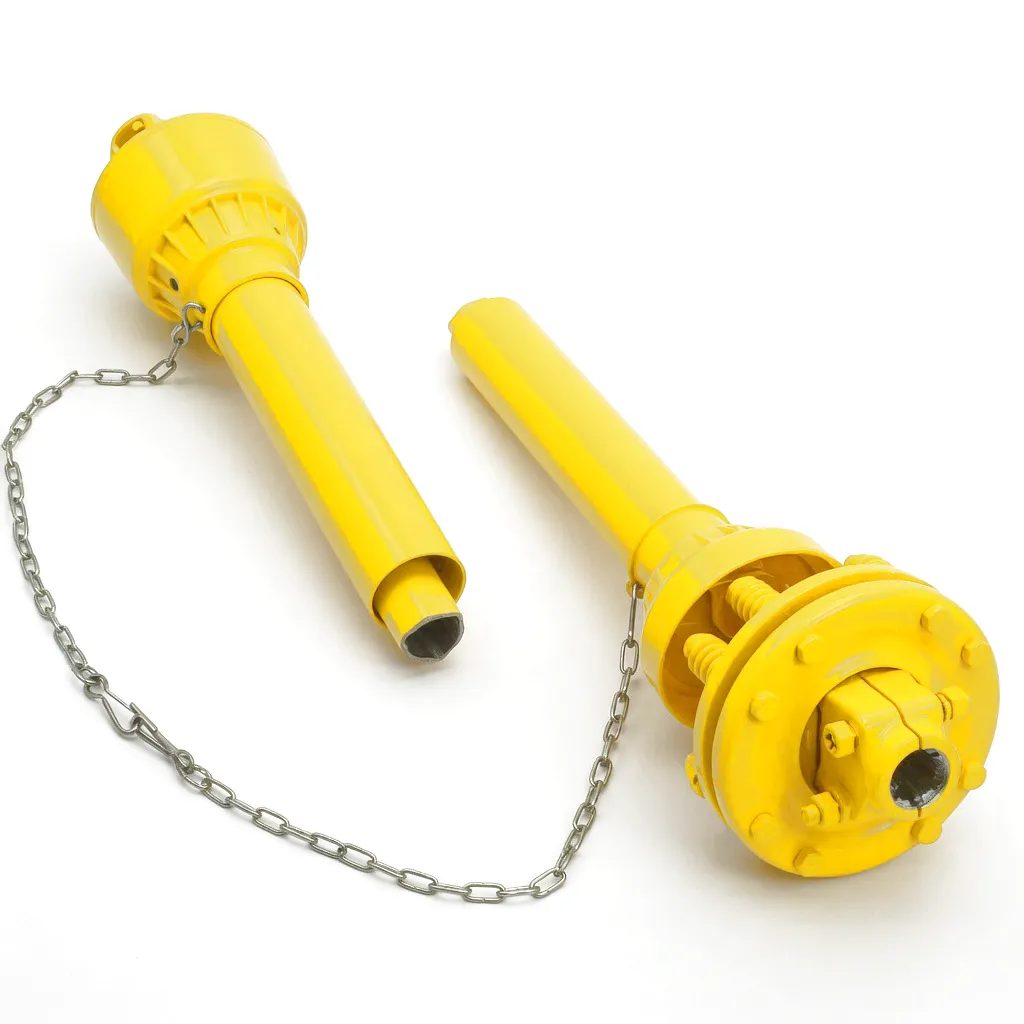

Factory-Preset Friction Slip Clutch
The slip clutch is factory-calibrated to the peak torque rating of the New Holland BigBaler 330 and 340 input gearbox. When an over-dense bale or hidden obstruction pushes torque beyond the set threshold, the clutch disengages in milliseconds — shielding the gearbox, flywheel bearings, and knotter drive shaft from catastrophic overload damage that would otherwise write off expensive components.
ISO 1940 G6.3 Dynamic Balance
Every completed PTO shaft assembly is spin-balanced to ISO 1940 G6.3. At 1000 RPM, an unbalanced shaft generates centrifugal forces that load cross-journal bearings unevenly, accelerating fatigue fractures and transmitting uncomfortable vibration into tractor cab and baler frame mounts. Balancing removes this failure mode entirely and extends overall drivetrain service life.
Phosphate-Coated Telescoping Tube
Inner and outer steel tubes receive a phosphate-and-grease surface treatment that blocks fretting corrosion at the spline contact zone — a known failure mode in the wet British climate. The telescoping range is engineered to cover the full hitch-height variation across popular UK tractor models, from compact 100 hp machines to 200 hp+ flagship tractors used on large arable farms.
Technical Specifications
The table below covers key parameters as supplied for New Holland BigBaler 330 and 340 applications. Custom variants — including extended tube lengths, alternative spline profiles, and modified clutch settings — are available on request. See the factory section below for details on bespoke configuration options.
| Parameter | Specification | Notes |
|---|---|---|
| Compatible Models | New Holland BigBaler 330 & 340 | OEM cross-reference on request |
| PTO Speed | 1 000 RPM | Standard for BigBaler 330 / 340 |
| Tractor-End Spline | 1-3/4″ × 20-tooth or 1-3/8″ × 6-tooth | Specify profile at time of order |
| Torque Capacity | Up to 2 800 Nm continuous | Clutch factory-set at 1 800 Nm (adjustable) |
| Collapsed / Extended Length | 820 mm / 1 150 mm | Custom lengths available |
| Max Operating Angle | 25° per joint | Wide-angle option available for tight coupling |
| Tube Material | Cold-drawn seamless steel (EN 10216-1) | 5 mm wall thickness minimum |
| Yoke Material | Drop-forged alloy steel (20CrMnTi) | Case hardened HRC 55–62 |
| Surface Treatment | Phosphate + grease + painted outer guard | Salt-spray resistance > 200 h |
| Safety Guard | Full-length plastic guard with retention chain | CE / UKCA Machinery Directive compliant |
| Certification | CE marked | Full technical file available on request |
How the PTO Shaft Functions Inside Your Baler Drivetrain
Power leaves the tractor’s rear PTO stub shaft, travels through the splined tractor-end yoke, down the telescoping steel tube, and arrives at the baler-end yoke to drive the input gearbox of the New Holland BigBaler 330 or 340. At 1000 RPM, this is a substantial reservoir of rotational energy that must be managed carefully. The two universal joints — one at each end of the shaft — allow the drivetrain to operate through pitch and yaw deflection angles of up to 25 degrees as the tractor turns headlands and responds to the undulating terrain found across much of the UK countryside. Without these joints, any angular misalignment between the tractor PTO axis and the baler input gearbox axis would produce severe velocity fluctuation, accelerated bearing wear, and frame cracking.
The friction slip clutch is the most strategically important element on this PTO driveshaft. Positioned between the baler-end yoke and the BigBaler 330 or 340 input flange, the clutch disc pack slides when torque exceeds the factory set-point — typically caused by a solid obstruction in the crop stream, a bale tied off-centre, or the knotter mechanism stalling momentarily. The clutch absorbs the energy impulse in under 50 milliseconds and resets automatically once the blockage clears. This mechanism has prevented thousands of gearbox destructions and knotter shaft fractures on working balers. Our shaft’s clutch arrives pre-torqued to New Holland BigBaler 330 and 340 specification but remains fully adjustable via the included spanner tool.
Typical deployment scenarios for this PTO driveshaft across the UK include: multi-shift contractor baling operations across the East Anglian cereal belt, silage and hay operations on livestock farms in Devon, Somerset, and the Welsh Borders, pre-delivery PDI installations by agricultural machinery dealers, and government-funded agri-environment scheme operators requiring full UKCA compliance documentation for their drivetrain components.
Customer Success: Proven Performance Across UK and European Farms
The following case study documents a documented, season-long deployment of this PTO shaft on a UK contracting fleet. Three independent customer testimonials follow.
Lincolnshire, UK · Arable Contracting · 2024 Season
J&T Farm Services Ltd — From Mid-Season Failure to Zero Shaft-Related Downtime
J&T Farm Services Ltd runs three New Holland BigBaler 340 machines across a 12,000-acre contracting area in Lincolnshire, covering wheat, barley, oilseed rape, and bean straw for twelve regular farm clients. In July 2023, a PTO shaft sourced from a non-specialist distributor suffered a spline fracture at the tractor-end yoke on day four of their main straw campaign. The eight-hour shutdown and emergency repair — sourced locally at premium cost — also allowed overnight dew to reduce bale-quality across two fields. After fitting this replacement PTO shaft ahead of the 2024 season, the three-baler fleet completed eleven consecutive weeks of operation without a single shaft-related stoppage. The fleet manager noted that the slip clutch response was noticeably more predictable: one incident involving a hidden concrete fence post buried in a swath was arrested before any secondary damage reached the gearbox. Total cost of the three replacement shafts was recovered in avoided repairs within the first four weeks of the season.
“Eleven weeks, three machines, zero shaft failures. That’s a result. The clutch saved the gearbox on the post incident — would have been a big repair otherwise.”
— Fleet Manager, J&T Farm Services Ltd, Lincolnshire, UK
“We ordered four PTO shafts for our BigBaler 330 fleet before the harvest. All four arrived correctly specified, and not one has needed attention through nine weeks of heavy barley straw baling across Suffolk and Essex. Packaging was excellent — splines arrived protected and lubricated.”
— Robert H., Agricultural Contractor, Suffolk, UK
“As a parts dealer in Aberdeenshire, I now stock this PTO shaft as the go-to replacement for customers running New Holland BigBaler machines. Lead times are consistent, the B2B account terms work well for a dealership, and we have had zero warranty returns across two full seasons of stocking.”
— Graeme M., Agricultural Parts Dealer, Aberdeenshire, Scotland
“We operate six BigBaler 340 machines in Normandy. The quality is fully on par with OEM, the price is significantly more competitive, and the ability to order custom tube lengths meant we matched the shaft precisely to our Fendt tractor hitch heights. Very good B2B supplier with responsive technical support.”
— Marc D., Farm Operations Manager, Normandy, France
Our Manufacturing Facility & Custom PTO Shaft Engineering Services
Our production facility integrates CNC turning centres, induction heat treatment lines, dynamic balancing machines, and a fully equipped quality laboratory under one roof. This vertical integration means every stage of PTO shaft manufacture is under direct engineering supervision. Raw steel bar is hardness-tested on receipt, machined splines are verified with go/no-go gauges against H7 tolerance specifications, and finished assemblies are spin-balanced and torque-tested before despatch. These controls are why our PTO shafts consistently deliver service lives matching or exceeding OEM components at a substantially lower replacement cost.
Custom PTO shaft design and manufacture is a core strength of our engineering team. We supply bespoke shafts to implement manufacturers, OEM baler builders entering new markets, and large UK contracting groups who need non-standard configurations. If your New Holland BigBaler 330 or 340 has been modified with a non-standard gearbox adaptor, or if your mixed fleet demands a single shaft specification across several baler models, our applications engineers will develop a solution complete with drawings, prototypes, and batch production sampling. Minimum order quantities for custom shafts are flexible — we work with single-machine repair shops as readily as with national dealership networks ordering seasonal inventory.
Discuss a custom order or bulk pricing for your UK operation?
Applications engineers respond within 24 hours. UK and international enquiries welcome.
Related Products
PTO Shaft for New Holland BB940A Round Baler
Direct-fit PTO driveshaft for the New Holland BB940A round baler, with integrated shear-bolt overload clutch and wide-angle joint assembly for easy tractor coupling in confined headland spaces.
Input Gearbox for Krone Big Pack 1290 Square Baler
Replacement input gearbox assembly for the Krone Big Pack 1290 and HDP series — frequently ordered alongside a PTO shaft replacement as part of a full drivetrain refresh programme ahead of the UK season.
Universal PTO Shaft — Agricultural Range 540 / 1000 RPM
Adjustable-length PTO shaft for spreaders, mowers, and cultivators across a broad range of European tractor models operating at either 540 or 1000 RPM, with friction or shear-bolt clutch options available.
Frequently Asked Questions
Our Manufacturing Facility
Source the Right PTO Shaft for Your New Holland BigBaler — Direct from Manufacturer
UK farms, contracting fleets, and agricultural dealers are welcome to enquire about pricing, technical data sheets, custom configurations, and volume supply agreements. Our applications engineering team brings over 18 years of PTO shaft design experience and will recommend the exact specification for your operating conditions — whether you are fitting a single machine or managing a national distribution account.
