Agricultural Potato Harvester Gearbox for Harvesting Potato

Precision Helical Gear Geometry

Helical-cut gears deliver smoother power transfer and significantly quieter operation compared to straight-cut alternatives. Ground tooth flanks maintain backlash tolerances below 0.05 mm, ensuring consistent performance even after extended field hours. This matters especially when the harvester speed must be precisely matched to forward travel to avoid bruising the crop.

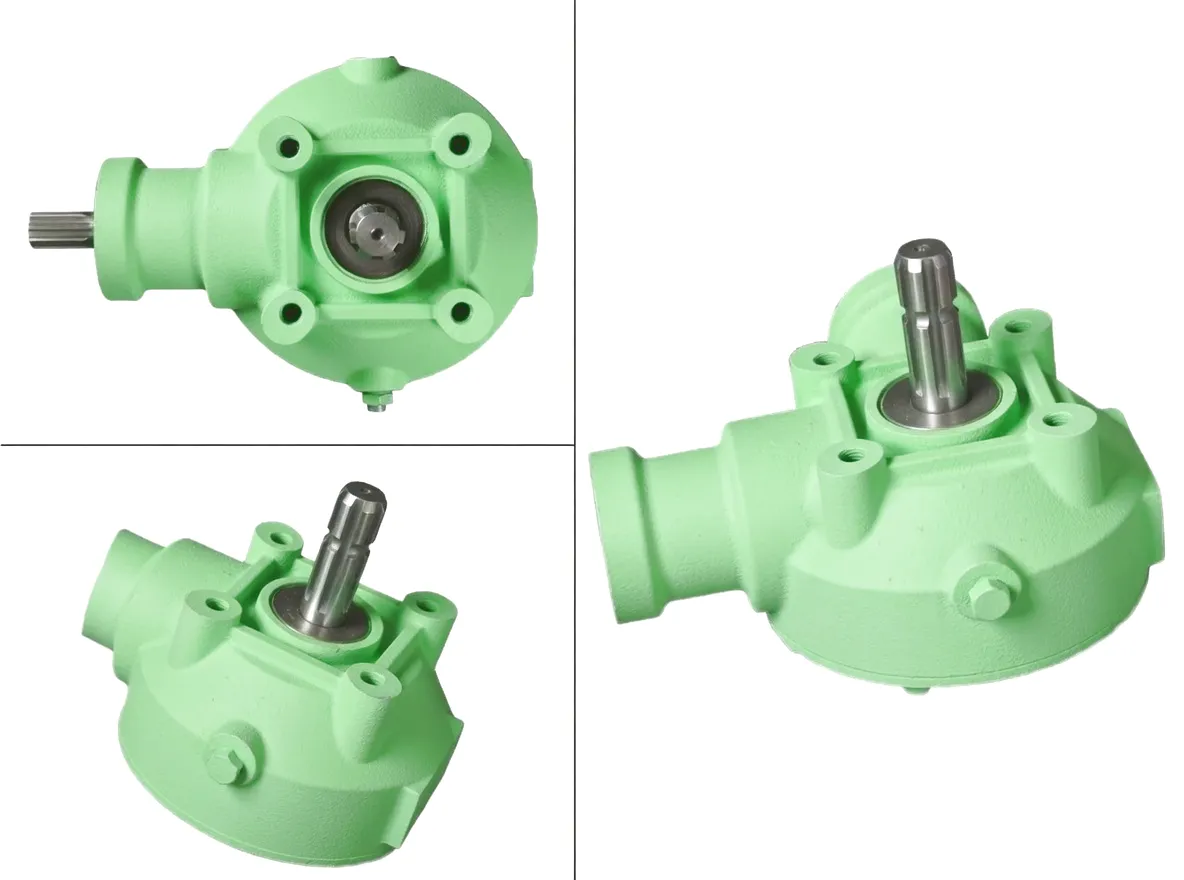

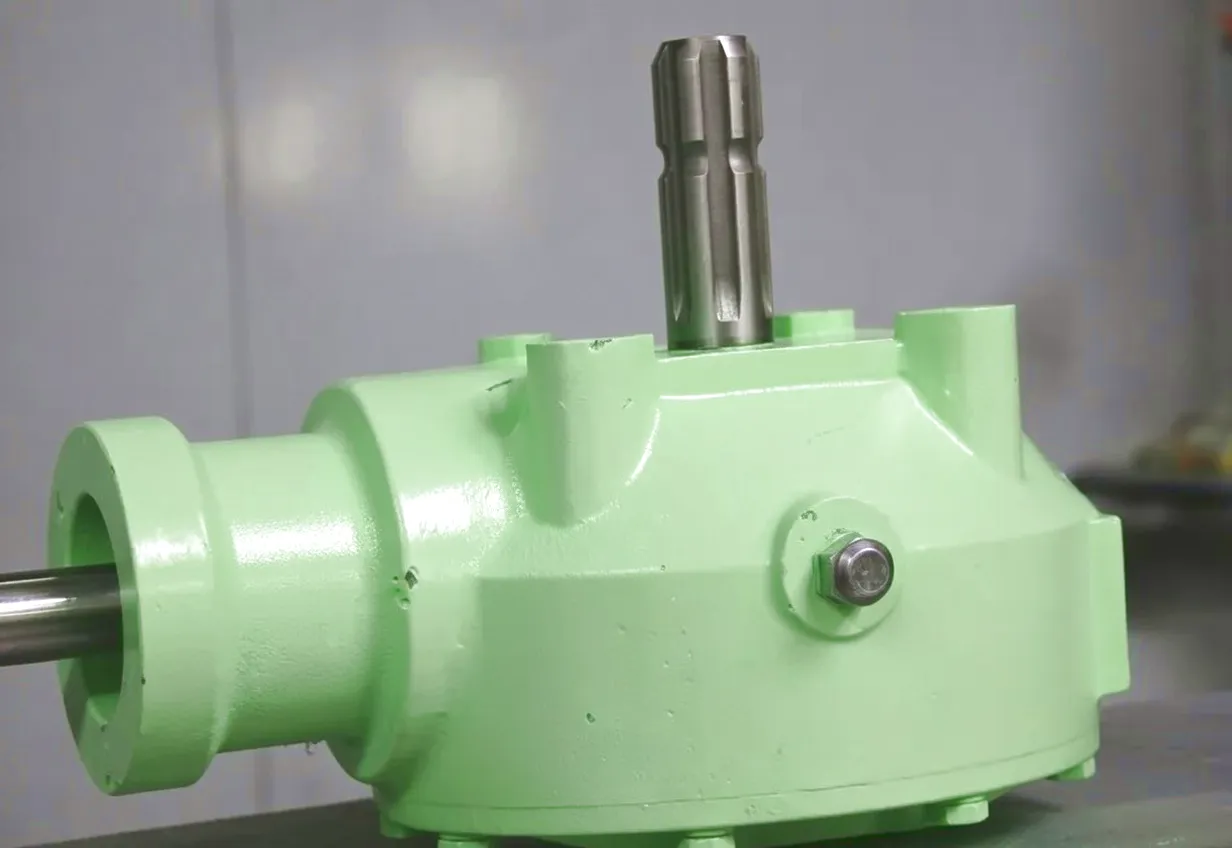

Heavy-Duty Cast-Iron Housing

The housing is cast in high-strength grey iron (EN-GJL-250), providing vibration damping, dimensional stability, and genuine impact resistance. Unlike lightweight aluminium housings used in lower-grade units, cast iron maintains bearing bore alignment under shock loads from rocky UK soils — particularly important in areas like the Fens where flint content is high.

IP65 Sealing — UK Weather Ready

Britain’s harvest season doesn’t wait for dry weather. Our reinforced lip seals and sealed bearing housings meet IP65 protection standards, keeping mud, water, and fine soil particles away from internal surfaces. This dramatically reduces lubricant contamination — the number-one cause of premature bearing failure on UK farm machinery.

High Torque-to-Weight Ratio

Optimised internal geometry delivers rated output torque of up to 1,200 Nm from a compact, lightweight package. This is essential for modern multi-row harvesters where total driveline weight must be minimised without sacrificing the torque headroom needed for dense, wet soil conditions common during October and November harvests in the UK.

Drop-In OEM Compatibility

Mounting bolt patterns, shaft diameters, and PTO connection profiles are available to match Grimme, AVR, Dewulf, Ropa, and other leading harvester brands. Custom shafting, flanges, and gear ratios can be produced to match your exact machine specification — eliminating costly adaptation work at the workshop.

Long Lubrication Intervals

Generous oil sump capacity combined with synthetic gear oil compatibility extends service intervals to 500 operating hours or one full UK season — whichever comes first. Sight glass oil level indicators and drain plug magnetic inserts allow quick checks without opening the housing, saving workshop time during back-to-back harvest schedules.

How the Gearbox Works

Power enters through the input shaft connected to the tractor’s 540 or 1,000 rpm PTO. The helical gear pair steps the speed up or down to match the harvester’s required working speed, while simultaneously changing the torque magnitude. The output shaft drives the harvester’s main digging mechanism — typically a series of reciprocating shares and a steeply inclined elevator web — through a universally jointed driveline. Reverse-rotation variants are available for combine-style machines where contra-rotating components are used to gently separate soil from tubers without bruising. The entire mechanical process occurs within a splash-lubricated sealed environment where oil is churned by the rotating gear set, reaching all bearing surfaces without the need for a separate oil pump.

Material Selection Philosophy

The case-hardened gear steel (20CrMnTi) used in this potato harvester gearbox achieves a surface hardness of HRC 58–62 with a tough ductile core — the ideal combination for agricultural applications where impact loading is unpredictable. The cast-iron housing provides the stiffness needed to maintain bearing alignment while absorbing the vibration inherent in reciprocating harvester mechanisms. All internal surfaces are shot-blasted and phosphate-treated before assembly to minimise corrosion under the condensation cycles common when machinery moves between cold night air and heated tractor sheds. External surfaces carry a two-coat epoxy primer and polyurethane topcoat system proven in marine-adjacent agricultural environments like coastal Lincolnshire and East Anglia.

Typical Application Scenarios

• Single-row and two-row trailed potato harvesters for small-to-medium UK farms
• Self-propelled four-row harvesters for large arable estates in Lincolnshire, Norfolk and Cambridgeshire
• Destoning and bed-forming machines in pre-planting soil preparation
• Potato haulm toppers requiring high-speed PTO-driven blade rotation
• Elevator drives on in-store handling equipment at pack houses
• Replacement and upgrade gearboxes for existing Grimme, AVR, Dewulf and Ropa machines
• OEM supply to UK and European agricultural machinery manufacturers

Midlands Agricultural Contracting Ltd — Lincolnshire, UK

“We’ve been running these gearboxes for two full seasons on our four-row Dewulf harvesters in Norfolk. Not a single oil leak, not a single bearing replaced. The drop-in fit saved our workshop at least three days of adaption work compared to what we’d been told to expect.”

★★★★★   — James H., Farm Engineer, Norfolk Potato Co-operative, UK

“We’re a mid-sized agricultural machinery dealer based in Yorkshire and we’ve recommended these units to twelve different farm customers over the past eighteen months. The lead time is consistent, the technical support on custom shaft profiles is genuinely impressive, and the after-sales documentation is complete. Our customers come back.”

★★★★★   — Paul T., Director, Yorkshire Farm Machinery Supplies Ltd, UK

“As a pack house operator in Cambridgeshire, we needed elevator drive gearboxes that could handle continuous 16-hour shifts during peak intake weeks. We’ve been using these units for one year and the only maintenance has been an oil top-up. The sealed bearing design holds up perfectly in our wash-down environment.”

★★★★★   — Sarah M., Operations Manager, Eastern Counties Pack House, Cambridgeshire, UK

Full In-House Production

Gear cutting, grinding, heat treatment, housing machining and assembly under one roof

OEM Supply & Custom Branding

White-label and custom branded supply for UK machinery manufacturers and dealers

Bespoke Shaft & Ratio Design

Custom centre distances, output shaft orientations and non-standard PTO profiles

Low MOQ Custom Runs

Custom production from as few as 10 units — ideal for specialist machine builders

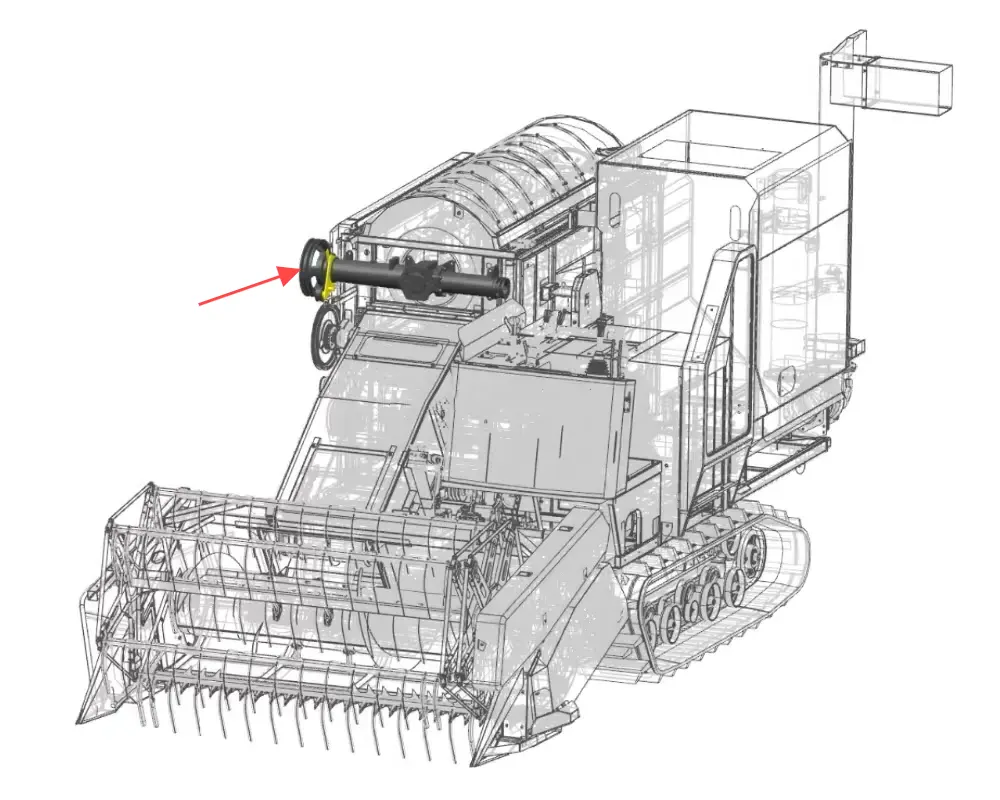

Combine Harvester Reversing Gearbox

High-torque reversing units for grain and cereal combine harvesters; compatible with major OEM platforms across the UK market.

Beet Harvester PTO Gearbox

Specifically rated for the high continuous-torque demands of sugar and fodder beet harvesters operating in heavy UK clay soils.

Mower & Conditioner Gearbox

High-speed input gearboxes for disc mowers and mower-conditioners; rated for up to 1,000 rpm PTO input with integrated overrun clutch options.

Manure Spreader Gearbox

Robust two-stage reduction gearboxes for horizontal and vertical beater spreaders; heavy-duty sealing for operation in highly corrosive environments.

Pricing varies significantly based on gear ratio, output torque rating, and any custom shaft or mounting configurations required. Standard production variants for two-row harvesters typically fall in the £280–£580 range ex-works; heavier-duty or custom-ratio units for four-row machines carry higher pricing. We always provide a full written quotation within 24 hours — contact our team at [email protected] with your machine model and required specifications for an accurate UK delivery quote.

We supply custom-dimensioned potato harvester gearboxes to UK agricultural machinery dealers, contractors and OEM manufacturers. Our engineering team works directly from your machine drawings or existing gearbox dimensions to produce a drop-in compatible unit with your required ratio. We have experience matching profiles for Grimme, Dewulf, AVR, Ropa and several smaller UK-based harvester builders. Send your drawings or measurements to our engineering team and we will provide a technical assessment and quotation.

Common indicators include oil leaks from shaft seals or housing joints, a rising operating temperature (noticeable by touch or via temperature gun), increased noise — particularly irregular knocking or a high-pitched whine from bearing damage — and detectable backlash when manually rocking the output shaft. If metal particles appear in the drained oil during a service, internal gear or bearing wear is confirmed. A gearbox showing two or more of these symptoms simultaneously during a UK harvest season is almost always more cost-effective to replace than repair, given workshop labour rates and parts availability timescales.

Bulk and OEM orders are a core part of our business. We work with UK machinery dealers, agricultural contracting groups and original equipment manufacturers who need consistent supply of gearboxes across a season or a production run. Volume pricing is available from five units upward, with significant tiered discounts for orders of twenty or more. Email [email protected] with your required quantity, model, and delivery location within the UK, and we will respond with a full commercial proposal within one business day.

Our standard potato harvester gearboxes are filled at the factory with ISO VG 220 mineral EP gear oil. For UK autumn harvesting conditions — particularly in October and November where ambient temperatures can drop below 5°C overnight — we recommend switching to a synthetic ISO VG 220 equivalent, which offers better cold-start viscosity behaviour and higher thermal stability during extended continuous operation. Popular UK-available options meeting these criteria include Shell Omala S4 GX 220 and Castrol Tribol GR 100/220-2 PD. Always drain and refill at the start of each season to remove moisture contamination.

The UK potato harvest season typically runs from late July through to November, with the main commercial harvest window concentrated in September and October. We strongly advise placing orders for replacement or spare gearboxes no later than June or early July to allow time for transit, customs clearance and any workshop fitting. For custom variants, allowing ten to twelve weeks from order confirmation is prudent. Orders placed through July often still arrive in time for the season start, but standard production variants clear faster than bespoke units, so early contact is always worthwhile.
